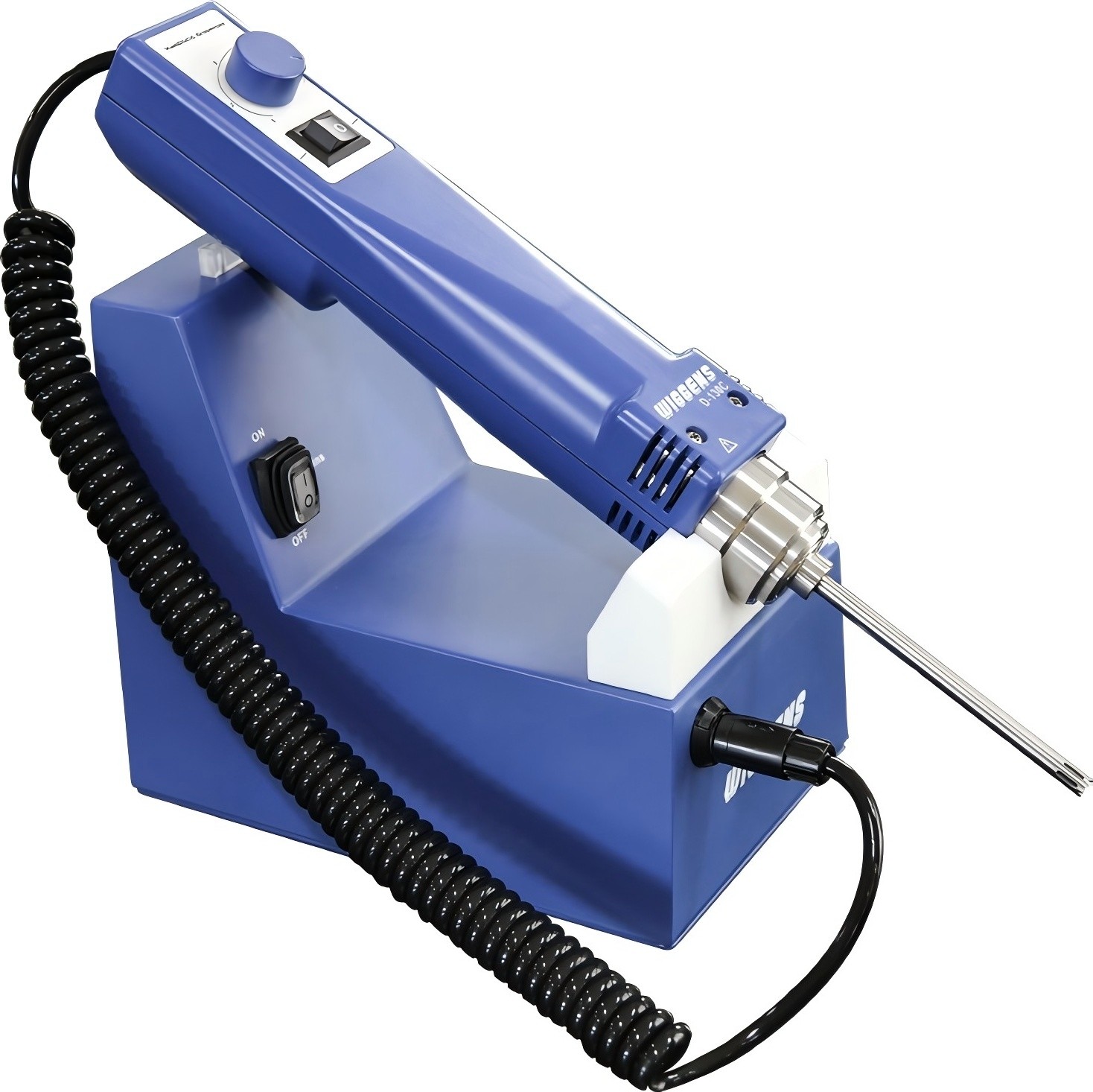

High Speed Homogenizer

Speed with Zero-Load:500~30,000 rpm,Process Range H2O:10~40,000mL

Model: D-500 Pro

Order NO.: D-500 Pro

7240

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

Used for homogenizing, emulsifying or suspending. There is a broad spectrum of dispersing tools to choose from.

Features
> Continuosly adjustable speeds for better results
> Light-weighted and small-dimensioned for better handling
> Triple safety of the drive (overload protection. Smooth start – against jerky work, safety switch)
> High quality dispersing tools as standard for better resistance to corrosion (SS 316 L steel)
> Quick-change system of the dispersing tools for a short changing time between preparations
> Viscosities up to 10,000 cps
> One shaft size
> High quality lab dispersing unit, at a competitive price!
> D-500pro can maintain constant motor speed by feedback control even under changing loads

Specifications

Model D-500 Pro
Speed setting Knob
Speed display LED
Process Range H2O(mL) 10~40,000mL
Speed with Zero-Load (rpm) 500~30,000 rpm
Applicable aggregates Ø4~Ø23 mm
Noise Level (dB) 66 dB (2500 rpm); 72 dB (30,000 rpm)
Motor AC
Input / Output Power (W) 500 W
Supply voltage (V) 220V/50Hz
Relative humidity (max.) 80% RH
Operating temperature 0~40℃
IP Code IP20
Dimensions (W x L x H in mm) Drive:157×76×236 mm
Weight (kg) Drive:1.8 kg

Recommend purchasing the set. The standard set includes: homogenizer, dispersing shaft, stand.

Accessories
