Temperature setting range [℃ ]：50.0~150.0
Model: WD310
Order NO.: 179310
5442
Specific parameters will be adjusted according to product upgrades, without notice.
Microprocessor control
The built-in unique microprocessor can provide precise temperature control for a variety of biochemical experiments.
Heating chamber in one piece
The heating tank is made of molded aluminum bath coated with PTFE.
Various optional heating blocks
Various types of heating block are available for option, and customized block is optional.
Three types of timer modes
OFF, OFF-TIME, and WAIT-TIME.
Certification
CE certification
Application
> Molecular biology
> Biochemistry
WIGGENS® dry block heaters are highly versatile suitable for broad range of applications.
> DNA extractions
> DNA analysis
> Melting point determination
> Nucleic acid hybridization
> Coagulation studies
> Biochemical processes
> Incubation and activation of cultures
> Blood examinations
> Fertile ground processing
> Restriction digest
> Denaturation
> Boiling point determination
> Enzymatic processes
> Enzyme activity studies
> Blood-urea-nitrogen determinations
> Immunoassays
> Enzyme reactions
> In situ hybridization
Specifications
| Model | WD310 |
| Order No. | 179310 |
| Temperature setting range [℃ ] | 50.0~150.0 |
| Temperature setting range with E-sensor [℃ ] | 40.0~150.0 |
| Safety temperature [℃ ] | Cut off at 170.0 |
| Temperature stability [℃ ] | ±0.1 |
| Temperature accuracy [℃ ] | ±0.1 |
| Time setting [min] | 1~9959 / off |
| Temperature display | LED display |
| Temperature setting | Touch button |
| Number of heating blocks × (block size W×L×Hmm) | 1×(79×104×50) |
| Dimensions W x D x H [mm] | 200 x270 x80 |
| Weight [kg] | 2.6 (W/O the block) |
| Power supply | 220V/50Hz,1A |

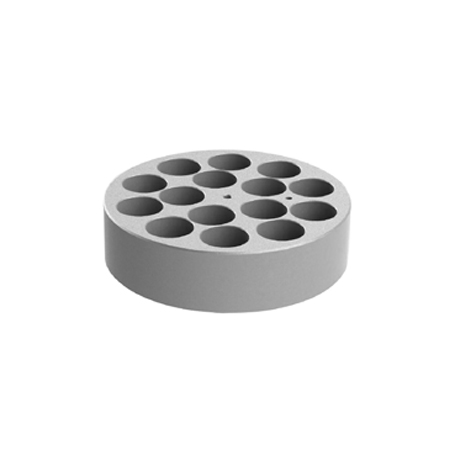

Heating Blocks for WD310 and WD320
|
Order No. |
Size |
Number of Holes |
Ø x H (mm) |
|
179300-01 |
0.2mL |
64 |
6x17mm |
|
179300-02 |
0.5mL |
20 |
8x25mm |
|
179300-03 |
1.5mL(or2.0) |
20 |
11x35mm |
|
179300-04 |
10mL |
20 |
10x33mm |
|
179300-05 |
13mL |
20 |
13x36mm |
|
179300-06 |
20mL |
12 |
20x48mm |
|
179300-07 |
25mL |
6 |
25x45mm |
|
179300-10 |
17mL |
12 |
17x44mm |
