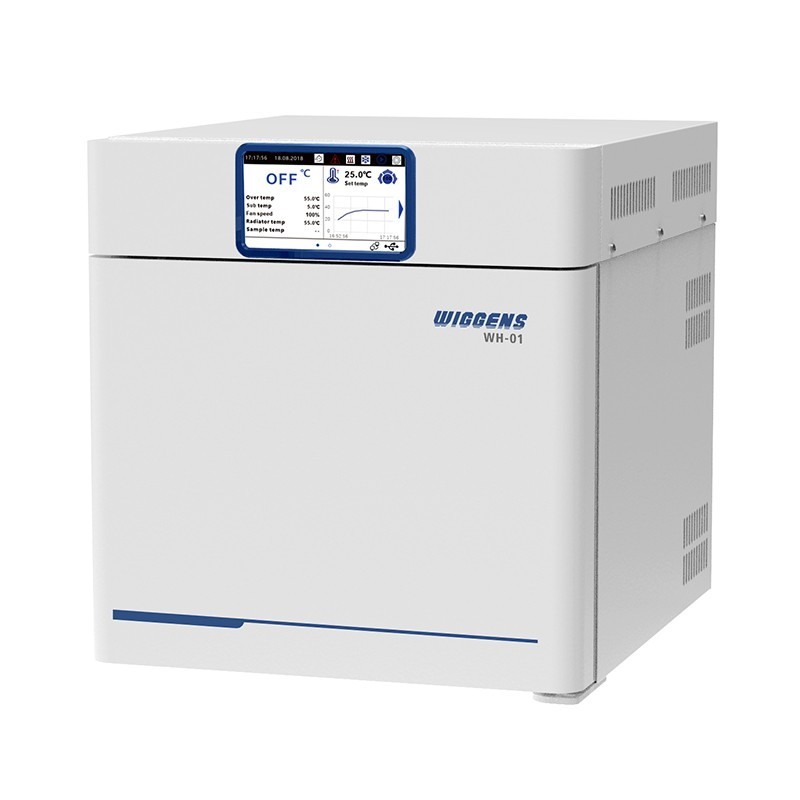

Peltier-cooled Incubator

Volumel:15L,Temperature Range:+4 ~ 60 (at 20℃ RT)℃

Model: WH-01

Order NO.: W6053015

1330

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

This series of incubators combines heating and peltier cooling systems, a perfect development from environmentally friendly and energy efficient heating and cooling technologies that facilitate excellent control accuracy and minimal fluctuations.

Features
> Applicable in life science, pharmacy, medical science, chemistry, biology, and related fields for storage of samples which need a constant temperature and for incubation.
> Heating function start and duration can be pre-set
> There are four temperature programs available for editing, and each program can be edited in 5 steps
> Four temperature can be preset for quick changeover
> Temperature measure unit can be set as either ℃ or O F
> When the temperature exceeds set levels and reaches the set safety value, an alarm activates, power is cut off, and the incubation process stops
> With tempered glass window, the examination of samples is easy and convenient, avoiding unnecessary disruptions of the incubation process
> The stainless steel shelves have a good air permeability, are easy to clean and can be adjusted in height
> When temperature deviation occurs, the BIAS function sets in, which makes operation convenient
> In the case of an unexpected power breakdown the incubator offers two working options: automatic re-operation and automatic stop
> When opening the incubator, the fan and heating device stop operation. After one minute without closing the door an alarm sets in
> Incubators use heat transfer method for circulation. In a separated room outside the work space it uses heat exchange, In the working space it uses natural convection and forced circulation
> The circulation method will not induce air pollution and can guarantee exact temperature distribution

Specifications

Model WH-01
Order No. W6053015
Temperature Control Method Forced circulation
Volume [L] 15
Temperature Range [℃ ] +4 ~ 60 (at 20℃ RT)
Temperature Stability [℃ ] ±0.1
Temperature Controller Touch Control; Digital Display with PID automatic regulation
Timer 1 min ~ 999hr 59 min / continuous
Heating Capacity [W] 150
Max. Cooling Capacity [W] 350
Shelves [included / max.] 2/5
Inner Dimensions [W×D×H in mm] 315x200X240
Outer Dimensions [W×D×H in mm] 400x 409.5x445
Weight[kg] 24
Power supply AC 220 ~ 240V, 50/60 Hz
